SIDPH dew point instruments has been designed to make continues measurement of the dew point in air and gases.Timely detection and handling of compressed air drying process problems.
It can extend the life of compressed air system components; to avoid some problems occur during compressed air system operation and maintaining efficient system operation, thus ensuring product quality and stability. Not only for applications related to air or gas drying. But also in many other industrial processes, ,as we all known that well-monitored dew points are crucial to the overall process .

PRODCUT

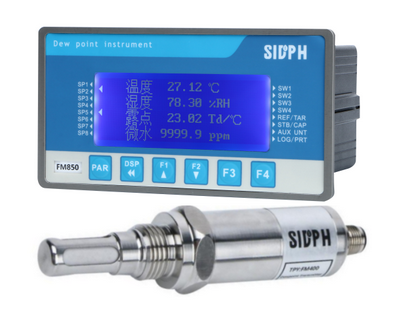

FM850 online dew point meter

SPECIFICATIONS：

Traceable calibration

The probe is corrosion resistance

Excellent stability save your calibration costs

Dew point measuring range -60~+60℃td

Display and record temperature ,humidity, dew point and ppmv at the same time

Analog output, digital communication, U disk recording

Alarm indication, multivariable relay control

DATASHEET MANUAL LIVE CHAT

FM850 is for industrial humidity measurement. The combination of high quality and intelligent electronic components makes the instrument successfully used in a variety of extremely harsh industrial environments. it uses a polymer film improves the measurement accuracy and reliability, and has excellent long-term stability.

TECHNICAL DATA

Measuring range	dew point：-60~+60℃td temperature：-50~100℃ humidity：0~100%RH ppmv：20~99999PPMV
Accuracy	dew point：±2℃Td temperature：±0.2℃ humidity：±0.8%RH
Pressure	20bar
Measuring gas	Non-strong corrosive gases
Operating temperature	-50~100℃
Flow rate	> 2L/min
Response time	T63<12s
Output signal	RS485/4-20mA
Alarm relay	4 way
Mechanical connection	G 1/2”tread (ISO 228/1)
Power supply	AC 220V
Protection class	IP65（NEMA4）
Housing material	316 stainless steel
Repeatability	<0.5%RH ;<0.1℃
EMC	Compliance with 04/108/EG
CE	Certified

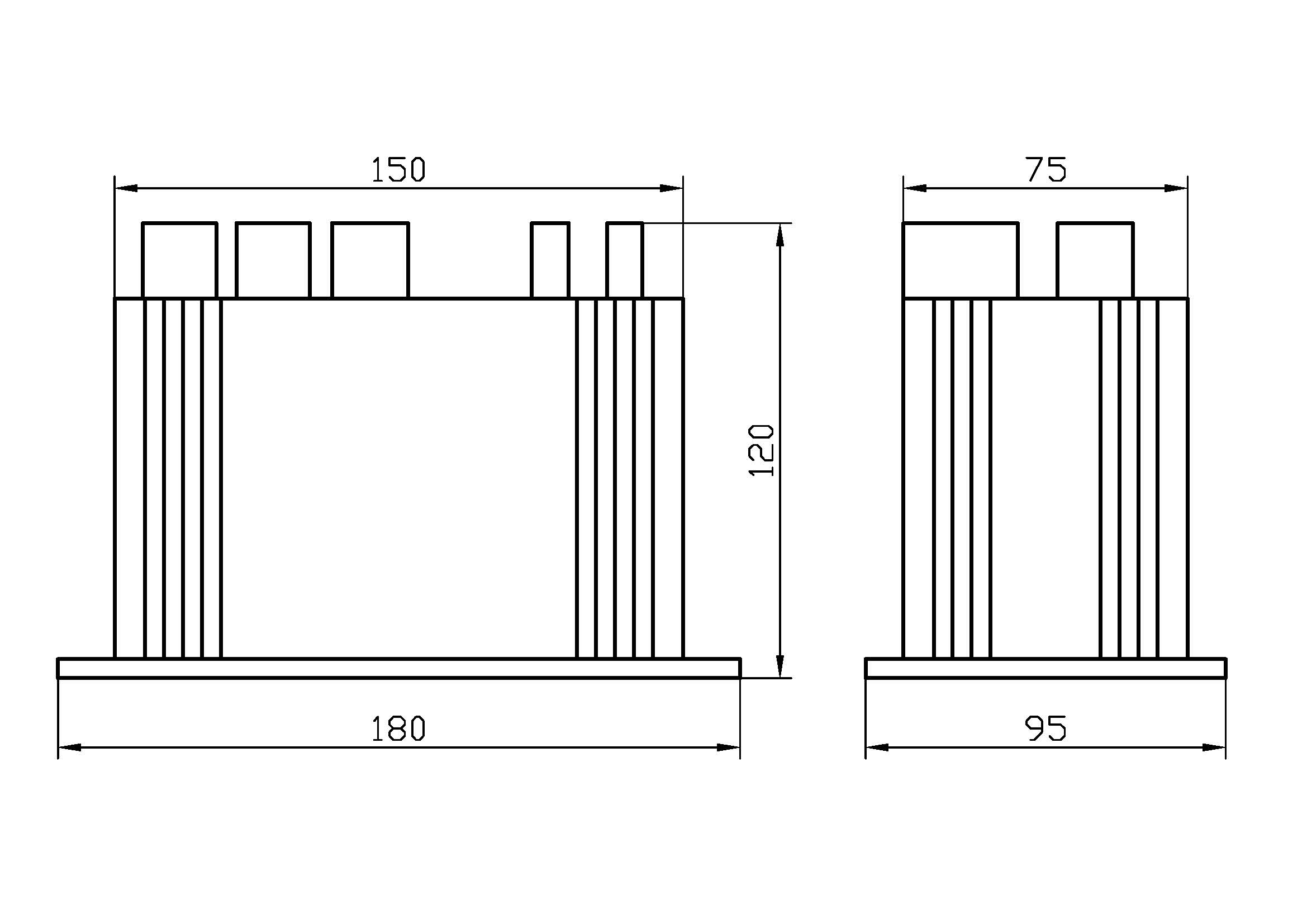

DIMENSIONS
