SIDPH dew point instruments has been designed to make continues measurement of the dew point in air and gases.Timely detection and handling of compressed air drying process problems.
It can extend the life of compressed air system components; to avoid some problems occur during compressed air system operation and maintaining efficient system operation, thus ensuring product quality and stability. Not only for applications related to air or gas drying. But also in many other industrial processes, ,as we all known that well-monitored dew points are crucial to the overall process .

PRODCUT

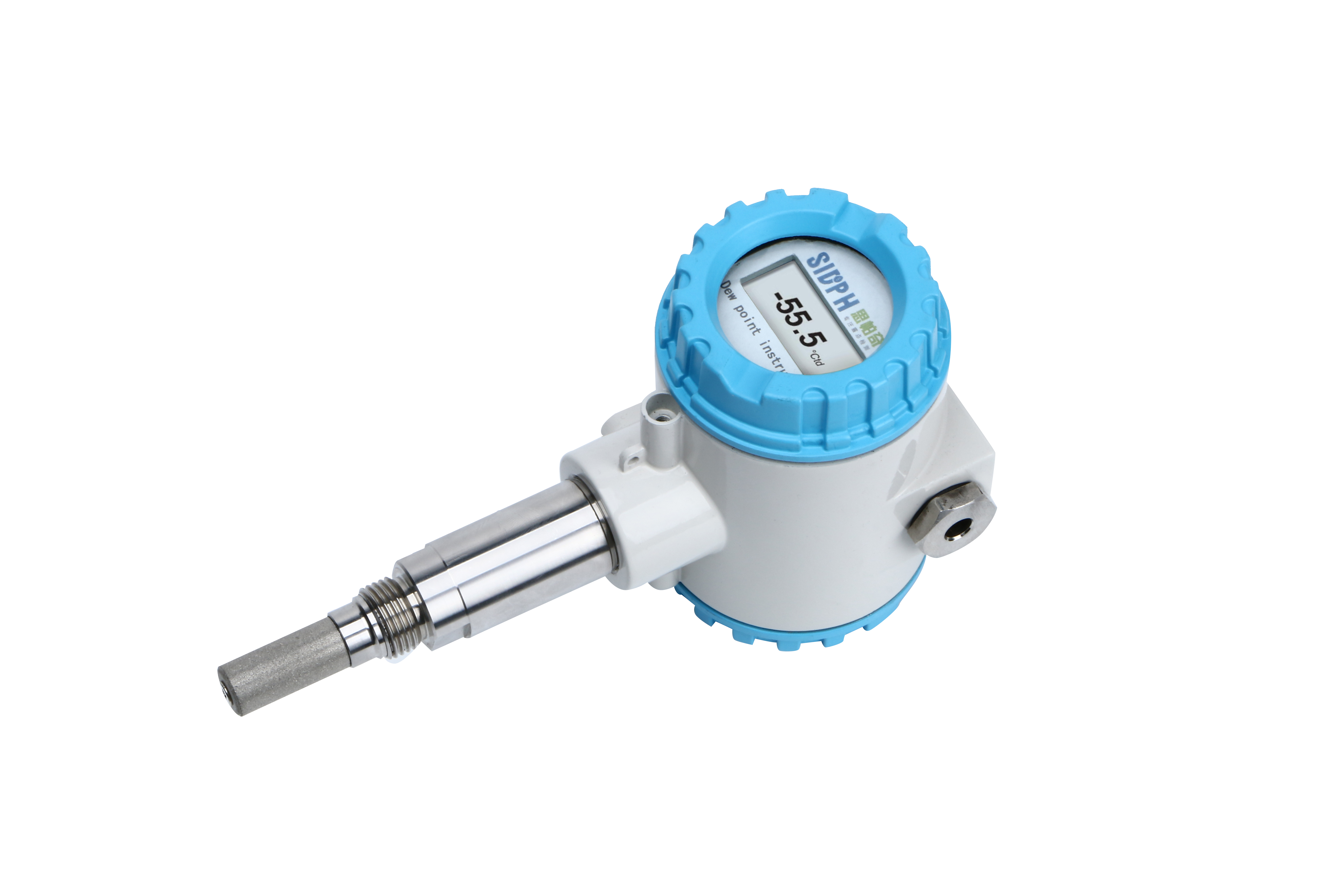

FM300 integrated type dew point instrument

SPECIFICATIONS：

Suitable for low dew point applications

Easy to operate

Display dew point, temperature, humidity and PPMV

IP65 for harsh environment

Fast response

High accuracy

Flexible configuration

Long term stability

DATASHEET MANUAL LIVE CHAT

FM300 dew point meter display real-time measurement ,to provide accurate and

rapid measurement in industrial applications like compressed air, metal processing,

plastic drying, fire gas.

TECHNICAL DATA

Measurement range	Dew point：-80…+20℃dp Temperature：-50…100℃ Humidity：0…100%RH PPMV：10…99999PPMV
Accuracy	Dew point：±2℃Td Temperature：±0.2℃ Humidity：±0.8%RH
Pressure	5MPa
Detect gas	non-strong corrosive gases
Operating temperature	-50~100℃
Gas flow rate	> 2 L/min
Response time	T63<12s
Output signal	4…20mA/RS485/HRART
Mechanical Connection	G 1/2” thread (ISO 228/1)
Supply voltage	24V/AC
Ingress protection	IP65（NEMA4）
Housing material	316 stainless steel
Repeatability	<0.5%RH ;<0.1℃
EMC	Compliance with IEC 61326-1
CE	Certified

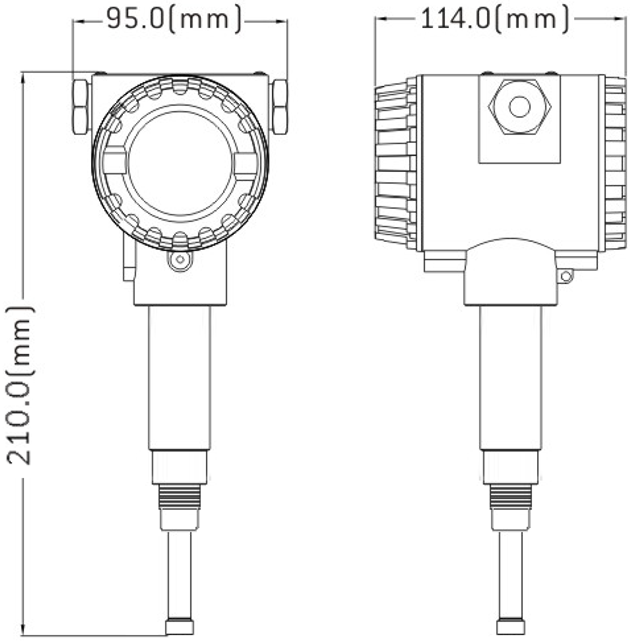

DIMENSIONS
